Amsoil synthetic diesel oil is engineered for all types of diesel engines with an emphasis on modern, low emission heavy duty diesel engines. High 12 TBN controls acids from combustion blow-by and EGR. High levels of detergency and dispersancy additives control soot thickening, oxidation and wear. Resists bore polishing, deposit formation and ring sticking. Provides clean engine performance. Extended drain capabilities reduce downtime, motor oil expenses, and fuel mileage.

See Pricing Information or Place an Order

Package sizes include:

1-Quart Bottle
1-Quart Bottles (case of 12)
1-Gallon Bottle
1-Gallon Bottles (case of 4)
2.5-Gallon Bottle
2.5-Gallon Bottles (case of 2)
30-Gallon Drum
55-Gallon Drum

PRODUCT DESCRIPTION
AMSOIL Synthetic Heavy Duty Diesel & Marine Motor Oil (AME) is a premium diesel oil providing excellent performance in all types of diesel engines where highly effective control of wear and deposits is vital. Built with heavy-duty dispersant/detergent additives, its 12 TBN chemistry neutralizes acids and controls soot thickening from EGR and blow-by to protect against corrosion, cylinder bore polishing (wear) and varnish/sludge deposits. AMSOIL AME resists heat and breakdown better than conventional petroleum oils for long lasting performance and protection.

AMSOIL, the leader in automotive synthetic lubrication, produced the world’s first API qualified synthetic motor oil in 1972. Trust the extensive experience of AMSOIL The First in Synthetics ® to do the best job protecting your engine.

Extends Drain Intervals
AMSOIL AME can extend drain intervals far beyond those recommended for conventional petroleum oils. Its unique synthetic formulation and long drain additive system deliver the best possible engine protection, cleanliness and performance over extended drain intervals, reducing vehicle maintenance and waste oil disposal costs.

Advanced Soot and Wear Control Formula
AMSOIL Synthetic Heavy Duty Diesel & Marine Motor Oil is heavily fortified with detergent/dispersant additives and is naturally resistant to soot. It keeps soot particles suspended independently, preventing them from attaching together to form larger, wear-causing particles. Viscosity increase is minimized and soot related wear is controlled.

Maximizes Fuel Economy, Reduces Oil Consumption and Emissions
AMSOIL AME has lower volatility (evaporation) than con-ventional petroleum oils. Because less oil vapor passes into the combustion chamber, oil consumption and emissions are reduced. Lower volatility helps AMSOIL AME retain its viscosity after high temperature service for excellent fuel economy and continued dependable protection.

Excellent Cold Flow Properties
AMSOIL AME remains fluid down to -44°F. It eases cold weather starting and provides vital start-up lubrication to prevent engine wear. AME outperforms conventional 15W-40 petroleum oils and greatly minimizes the impact of cold weather operation.

Below: Noack Volatility, % weight loss (g/100g) (ASTM D-5800)

Noack VolatilityTest Chart

Diesel Oil Test - Wear Scar

APPLICATIONS
AMSOIL Synthetic Heavy Duty Diesel & Marine Motor Oil is engineered for use in a wide variety of light and heavyduty applications, including over-the-road trucks, off road construction, marine engines, farm equipment, mining, industrial (pumps & generators) and personal automotive or commercial transportation. It is excellent for use with low or high sulfur diesel fuels in standard, turbocharged or supercharged engines, including modern low emission diesels such as those equipped with EGR systems.

AMSOIL Synthetic Heavy Duty Diesel & Marine Motor Oil is recommended for use in diesel engines and other applications requiring any of the listed worldwide specifications and gasoline engines requiring API SL, SJ, SH… or ACEA A3.

API CI-4+, CF, CF-2, SL
ACEA A3/B3, E2, E3, E5, E7
Global DHD-1
JASO DH-1
Mack EO-N Premium Plus '03
DDC Power Guard 93K214
Caterpillar ECF-1A, ECF-2
Cummins CES 20071, 20072, 20076, 20077, 20078
Volvo VDS-2, VDS-3
MB 228.3, 229.1
MAN 271/3275
MTU Type 2

MIXING AMSOIL
AMSOIL AME is compatible with conventional and synthetic motor oils. Mixing AMSOIL motor oils with other oils, however, will shorten the oil life expectancy and reduce the performance benefits. AMSOIL does not support extended drain intervals where oils have been mixed.

Aftermarket oil additives are not recommended for use with AMSOIL motor oils.

SERVICE LIFE
AMSOIL Synthetic Heavy Duty Diesel & Marine Motor Oil is recommended for extended drain intervals in unmodified⁽¹⁾, mechanically sound⁽²⁾ vehicles or equipment as follows:

Personal Light Truck Diesel Engine Service

• Normal Service⁽³⁾ -- Up to 25,000 miles or one year, whichever comes first, or longer based on oil analysis.

• Severe Service⁽⁴⁾ -- Up to 15,000 miles or one year, whichever comes first, or longer based on oil analysis.

• Replace AMSOIL Ea™ full flow oil filter at the time of oil change up to 25,000 miles (other brands at standard OEM* intervals).

Commercial or Fleet Vehicles, Long-Haul Trucks, Marine Craft, RV, Off-Road Equipment

• Non-EGR equipped diesels -- extend drain intervals up to two times (2X) the OEM* recommended drain interval or one year, whichever comes first, or longer based on oil analysis.

• EGR equipped or low emission diesels -- extend drain intervals based on oil analysis or use the longest drain recommendation of the OEM*.

• Replace Donaldson Endurance™ or AMSOIL Ea™ full flow oil filters at the time of oil change up to two times (2X) longer than the OEM* standard interval, not to exceed 60,000 miles in long-haul trucks.

Gasoline Engine Service

• In gasoline engines, oil drain intervals may be extended up to two times (2X) the OEM* recommended drain interval (not to exceed 15,000 miles without oil analysis) or one year, whichever comes first. Replace AMSOIL Ea™ full flow filter at the time of oil change up to 25,000 miles. Replace other brand oil filters at standard OEM* intervals.

*OEM = Original Equipment Manufacturer

⁽¹⁾ Engines operating under modified conditions are excluded from extended drain recommendations. Examples include the use of performance computer chips; non-OEM approved exhaust, fuel or air induction systems; and the use of fuels other than those recommended for normal operation by the manufacturer.

⁽²⁾ Engines are in good working condition and within the factory design settings. Mechanically sound engines, for example, do not leak oil or consume excessive amounts, are not worn out, do not overheat, do not have internal or external anti-freeze leaks and have a properly working emission control system. AMSOIL recommends repairs be made to malfunctioning engines prior to the installation of AMSOIL synthetic oils.

⁽³⁾ Personal transportation vehicles frequently traveling greater than 10 miles (16 km) at a time and not operating under severe service.

⁽⁴⁾ Extensive engine idling, daily short trip driving less than 10 miles (16 km), frequent towing, plowing, hauling heavy loads or dusty-condition driving.

AMSOIL by-pass oil filters are specialized for the removal of small, wear-causing dirt particles, thereby extending engine life. AMSOIL encourages using an AMSOIL bypass filter system for maximum engine and oil life.

Oil Analyzers Inc., 715-395-0222, is a division of AMSOIL that provides cost effective, quality oil analysis services.

Health & Safety
This product is not expected to cause health concerns when used for the intended application and according to the recommendations in the Material Safety Data Sheet (MSDS). An MSDS is available upon request at 715-392-7101 or on our website. Keep Out of Reach of Children. Don't pollute. Return used oil to collection centers.

TYPICAL TECHNICAL PROPERTIES
AMSOIL Synthetic SAE 15W-40 Heavy-Duty Diesel and Marine Motor Oil (AME)
Kinematic Viscosity @ 100°C, cSt (ASTM D-445)	14.4
Kinematic Viscosity @ 40°C, cSt (ASTM D-445)	89.7
Viscosity Index (ASTM D-2270)	167
CCS Viscosity @ -20°C, cP (ASTM D-5293)	4477
Pour Point °C (°F) (ASTM D-97)	-42 (-44)
Flash Point °C (°F) (ASTM D-92)	238 (460)
Four Ball Wear Test (ASTM D-4172B: 40 kg, 75°C, 1200 rpm, 1 hour), Scar, mm	0.35
Noack Volatility, % weight loss (g/100g) (ASTM D-5800)	6.8
High Temperature/High Shear Viscosity (ASTM D-4683 @ 150°C, 1.0 X 10⁶ s.^-1, cP	4.4
Total Base Number	12.1

Series 3000 Synthetic 5W-30 Heavy-Duty Diesel Oil (HDD) consistently outperforms conventional and synthetic diesel oils for long-lasting performance and protection.

See Pricing Information or Place an Order

Package sizes include:

1-Quart Bottle
1-Quart Bottles (case of 12)
1-Gallon Bottle
1-Gallon Bottles (case of 4)
2.5-Gallon Bottle
2.5-Gallon Bottles (case of 2)
30-Gallon Drum
55-Gallon Drum

PRODUCT DESCRIPTION
AMSOIL Series 3000 100% Synthetic 5W-30 Diesel Oil (HDD) delivers extraordinary lubrication in both diesel and gasoline engines found in commercial, fleet and personal vehicles. By combining the industry’s premier synthetic technology with AMSOIL premium additives, AMSOIL HDD exceeds the higher performance demands of modern engines. It withstands the stress of higher heat, higher acid levels and excessive soot loading found in EGR equipped engines. AMSOIL Series 3000 Synthetic 5W-30 Diesel Oil consistently outperforms conventional and synthetic diesel oils for long-lasting performance and protection.

Extends Drain Intervals
AMSOIL HDD can extend drain intervals far beyond those recommended for conventional oils. Its unique synthetic formulation and long drain additive system deliver the best possible engine protection, cleanliness and performance over extended drain intervals, reducing vehicle maintenance and waste oil disposal costs.

Maximizes Fuel Economy
AMSOIL Synthetic 5W-30 Heavy Duty Diesel Oil is energy efficient for reduced fuel costs. Its low viscosity minimizes “drag” associated with high viscosity oils, allowing the engine to operate more freely, maximizing power and fuel economy.

Unsurpassed Protection Against Engine Wear

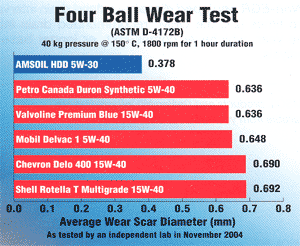

In the Four-Ball Wear Test (ASTM D-4172B) AMSOIL HDD demonstrated better anti-wear performance than competitive petroleum and synthetic oils. Even under high temperatures and pressures, its superior film strength and anti-wear additives help prevent metal-to-metal contact. AMSOIL HDD reduces ring wear, cylinder bore polishing, oil consumption and valve train wear for improved engine life and lower maintenance costs.

Controls Soot Thickening and Wear
AMSOIL Synthetic 5W-30 Heavy Duty Diesel Oil is heavily fortified with detergent/dispersant additives and is naturally resistant to soot. It keeps soot particles suspended independently, preventing them from attaching together to form larger, wear-causing particles. Viscosity increase is minimized and soot related wear is controlled.

Reduces Oil Consumption and Emissions
AMSOIL HDD loses only 6.7% of its mass to high temperature volatility (evaporation) in the NOACK test, outperforming all conventional oils. Because less oil vapor passes into the combustion chamber, oil consumption and emissions are reduced. Additionally, lower volatility helps AMSOIL HDD retain its viscosity after high temperature service for continued dependable protection and excellent fuel economy.

Excels in Extreme Temperatures
AMSOIL Synthetic 5W-30 Heavy Duty Diesel Oil resists thermal (heat) breakdown, oxidation and sludge formation better than conventional oils. And unlike conventional petroleum oils, AMSOIL HDD contains no wax. It stays fluid down to -60°F for improved cold temperature oil flow, reduced bearing wear and easier starting.

APPLICATIONS
AMSOIL Synthetic 5W-30 Heavy Duty Diesel Oil is recommended for diesel engines and other applications requiring any of the listed worldwide specifications and gasoline engines requiring API SL, SJ, SH . . . or ACEA A3.

• API CI-4+, CF, CF-2, SL • ACEA A3/B3, E2, E3, E5 • Global DHD-1 • JASO DH-1 • Mack EO-N Premium Plus ’03 • DDC Power Guard 93K214 • Caterpillar ECF-1-a, ECF-2 • Cummins CES 20071, 20072, 20076, 20077, 20078 • Volvo VDS-2, VDS-3 • MB 228.1, 228.3, 229.1 • MAN 3275 • MTU Type 1 • MIL-PRF-2104G

AMSOIL HDD is compatible with conventional and synthetic motor oils. Mixing AMSOIL motor oils with other oils, however, will shorten the oil life expectancy and reduce the performance benefits. AMSOIL does not support extended drain intervals where oils have been mixed. Aftermarket oil additives are not recommended for use with AMSOIL motor oils.

SERVICE LIFE
AMSOIL Synthetic 5W-30 Heavy Duty Diesel Oil is recommended for extended drain intervals in unmodified(1), mechanically sound(2) vehicles or equipment as follows:

Personal Light Truck Diesel or
Gasoline Engine Service

• Normal Service(3) – Up to 25,000 miles or one year, whichever comes first, or longer based on oil analysis.

• Severe Service(4) – Up to 15,000 miles or one year, whichever comes first, or longer based on oil analysis.

• Replace AMSOIL Ea™ full flow oil filter at the time of oil change up to 25,000 miles (other brands at standard OEM* intervals).

Commercial or Fleet Vehicles, Long-Haul Trucks, Marine Craft, RV, Off-Road Equipment

• Non-EGR equipped diesels – extend drain intervals up to two times (2X) the OEM* recommended drain interval or one year, whichever comes first, or longer based on oil analysis.

• Pre-2007 EGR equipped or low emission diesels – extend drain intervals based on oil analysis or use the OEM* recommended interval.

• Replace Donaldson Endurance™ or AMSOIL Ea™ full flow oil filters at the time of oil change up to two times (2X) longer than the OEM* standard interval, not to exceed 60,000 miles in long-haul trucks.

*OEM = Original Equipment Manufacturer

(1) Modifications and Alterations – Engines operating under modified conditions are excluded from extended drain recommendations. Examples include the use of performance computer chips; non-OEM approved exhaust, fuel or air induction systems and the use of fuels other than those recommended for normal operation by the manufacturer.

(2) Mechanically sound engines are in good working condition and do not, for example, leak oil or consume excessive amounts, are not worn out, do not overheat, do not leak anti-freeze and have properly working emission control systems. AMSOIL recommends repairing malfunctioning engines prior to the installation of AMSOIL synthetic oils.

(3) Personal vehicles frequently traveling greater than 10 miles (16km) at a time and not operating under severe service.

(4) Gasoline Engine Severe Service defined as turbo/supercharged engines, commercial or fleet vehicles, excessive engine idling, first and subsequent use of AMSOIL engine oil in vehicles with over 100,000 miles, daily short trip driving less than 10 miles (16 km), frequent towing, plowing, hauling or dusty condition driving.

Diesel Engine Severe Service defined as extensive engine idling, daily short trip driving less than 10 miles (16 km), frequent towing, plowing, hauling or dusty condition driving.

AMSOIL Ea™ and Donaldson Endurance™ full flow oil filters are designed for extended drain intervals. They stop smaller particles, have less restriction and last longer than regular filters. For best performance, use AMSOIL Ea™ or Donaldson Endurance™ oil filters. Oil Analyzers Inc., 715-395-0222, is a division of AMSOIL that provides cost effective, quality oil analysis services.

Health & Safety
This product is not expected to cause health concerns when used for the intended application and according to the recommendations in the Material Safety Data Sheet (MSDS). An MSDS is available upon request at 715-392-7101 or via the Internet at http://www.amsoil.com/msds/index.aspx?zo=1173195. Keep Out of Reach of Children. Don’t pollute. Return used oil to collection centers.

TYPICAL TECHNICAL PROPERTIES - Revised as of 8/07
AMSOIL Series 3000 Synthetic 5W-30 Heavy-Duty Diesel Oil (HDD)
Kinematic Viscosity @ 100°C, cSt (ASTM D-445)	11.4
Kinematic Viscosity @ 40°C, cSt (ASTM D-445)	64.6
Viscosity Index (ASTM D-2270)	174
Cold Crank Simulator Apparent Viscosity @ -30°C, cP (ASTM D-5293)	5086
Pour Point °C (°F) (ASTM D-97)	-50 (-58)
Flash Point °C (°F) (ASTM D-92)	228 (442)
Noack Volatility (DIN 51581) 250°C for 1 hour, % weight loss	6.9
High Temperature/High Shear Viscosity, cP, 150°C, 1.0 x 10⁶ s^-1 (ASTM D-4683)	3.5
Four-Ball Wear Test (ASTM D-4172: 40kgf, 150°C, 1800 rpm, 1 hr) Scar diameter, mm	0.38
Total Base Number	12.2

Amsoil Synthetic Diesel Oil - 10w-30 is ideal for use in a wide variety of light and heavy-duty applications, including agriculture, off-road construction, trucking, mining, industrial (pumps and generators) and personal automotive or commercial transportation.

AMSOIL Synthetic Diesel Oil 10W-30/SAE 30
Heavy Duty Diesel Oil (ACD)
Exceeds both 10W-30 multi-grade and SAE 30 straight-grade viscosity requirements. Provides outstanding performance in older and modern diesel engines as well as gasoline engines. Excellent for heavy equipment and personal vehicles. Worldwide performance specifications include: API CI-4+/CF/CF-2/SL; Global DHD-1; ACEA A3/B3, E3, E5; JASO DH-1; Mack; Detroit Diesel; Caterpillar; Cummins; Volvo; Daimler-Benz

See Pricing Information or Place an Order

Package sizes include:

1-Gallon Bottle
1-Gallon Bottles (case of 4)
30-Gallon Drums
55-Gallon Drums

PRODUCT DESCRIPTION
AMSOIL Synthetic Diesel Oil 10W-30/SAE 30 Diesel Oil (ACD) is formulated with premium synthetic base oils that exceed both 10W-30 multi-grade and SAE 30 straight-grade viscosity requirements for outstanding performance in modern and older diesel engines. Unlike conventional SAE 30 motor oils, AMSOIL ACD has a naturally high viscosity index and does not contain paraffin (wax). It has a -36°F pour point and qualifies for SAE 10W, making it an “all season” multi-grade lubricant with a wide operating temperature range. AMSOIL ACD is formulated without viscosity index improvers (VI). This shear stable formulation stops viscosity loss and associated bearing and cylinder bore wear. AMSOIL ACD contains premium additives with a high 12 TBN to neutralize acids from blow-by, exhaust gas recirculation (EGR) and high sulfur diesel fuels. It protects against damaging piston deposits, ring sticking and sludge.

AMSOIL, the leader in automotive synthetic lubrication, produced the world’s first API qualified synthetic motor oil back in 1972. Trust the extensive experience of AMSOIL The First in Synthetics® to do the best job protecting your equipment.

APPLICATIONS
Where these viscosity grades are specified, AMSOIL Synthetic 10W-30/SAE 30 Diesel Oil (ACD) provides outstanding performance as a straight-grade SAE 30 for older two- and four-stroke diesels and as a multi-grade SAE 10W-30 in modern four-stroke diesels as well as gasoline engines. AMSOIL ACD is ideal for use in a wide variety of light and heavy-duty applications, including agriculture, off-road construction, trucking, mining, industrial (pumps and generators) and personal automotive or commercial transportation. It is recommended for use with low or high sulfur diesel fuels in standard, turbocharged or supercharged engines, including modern low emission diesels such as those equipped with EGR systems.

PERFORMANCE
AMSOIL Synthetic Diesel Oil ACD is recommended for all diesel engines requiring any of the listed worldwide specifications. It also may be used in gasoline engines where the performance standards API SL or prior are specified.

API CI-4+/CH-4/CG-4/SL
API CF/CE/CD/CC
API CF-2/CD-II
Global DHD-1
ACEA A3, B3, E3, E5
JASO DH-1
Mack EO-N Premium Plus '03
Detroit Diesel Power Guard 93K214
Caterpillar ECF-1
Cummins CES 20076, 20077, 20078 (current), 20071/20072 (older)
Volvo VDS3, VDS2
Mercedes Benz 228.1, 228.3, 229.1
MAN 271, 3275

MIXING AMSOIL
AMSOIL Synthetic Diesel Oil ACD is compatible with conventional and synthetic motor oils, however, mixing AMSOIL ACD with other oils will shorten the oil life expectancy and reduce the associated performance benefits. AMSOIL does not support extended drain intervals where AMSOIL ACD has been mixed with another product. Aftermarket additives are not recommended for use with AMSOIL ACD.

SERVICE LIFE
AMSOIL ACD is formulated for extended drain intervals and typically provides much longer service life than conventional petroleum oils in diesel-fueled engines. Extended drain intervals vary depending on application and operating conditions. AMSOIL recommends ACD for the following drain intervals:

In unmodified pick-up and automotive diesel engines, extend drain intervals up to 25,000 miles or one year, whichever comes first, or longer based on oil analysis. Change AMSOIL EaO oil filter at 25,000 miles or one year, whichever comes first.

AMSOIL by-pass oil filters are specialized for the removal of small, wear causing dirt particles, thereby extending engine life. AMSOIL encourages using an AMSOIL by-pass filter system for maximum engine and oil life.

Oil Analyzers Inc. (715-395-0222) is a division of AMSOIL that provides cost-effective, quality oil analysis services.

TYPICAL TECHNICAL PROPERTIES
AMSOIL Synthetic 10W-30/SAE 30 Heavy Duty Diesel Oil (ACD)
Kinematic Viscosity @ 100°C, cSt (ASTM D-445)	10.9
Kinematic Viscosity @ 40°C, cSt (ASTM D-445)	71.4
Viscosity Index (ASTM D-2270)	141
Cold Crank Simulator Apparent Viscosity @ -25°C, cP (ASTM D-2602)	5165
Pour Point °C (°F) (ASTM D 97)	-38 (-36)
Flash Point °C (°F) (ASTM D 92)	232 (450)
Fire Point °C (°F) (ASTM D 92)	246 (475)
Noack Volatility, % weight loss (g/100g) (ASTM D-5800)	6.3
Four Ball Wear Test (ASTM D 4172B: 40 kg, 75°C, 1200 rpm, 1 hour, Scar in mm)	0.40
Total Base Number	>12

AMSOIL Synthetic 5W-40 Premium Diesel Oil (DEO)

AMSOIL Premium API CJ-4 Synthetic 5W-40 Diesel Oil (DEO)
Maximum Fuel Economy and Extended Drain Intervals in Ultra-Low Emission Diesel Engines. AMSOIL Synthetic 5W-40 Diesel Oil (DEO) is the premium choice for API CJ-4 emission-quality diesel oil required by model-year 2007 and newer diesel engines.

See Pricing Information or Place an Order

Package sizes include:

1-Quart Bottle
1-Quart Bottles (case of 12)
1-Gallon Bottle
1-Gallon Bottles (case of 4)
2.5-Gallon Bottle
2.5-Gallon Bottles (twin pack)
30-Gallon Drum
55-Gallon Drum

PRODUCT DESCRIPTION
AMSOIL Synthetic 5W-40 Diesel Oil (DEO) is the premium choice for API CJ-4 emission-quality diesel oil required by model-year 2007 and newer diesel engines. It delivers extraordinary lubrication in diesel engines found in commercial, fleet and personal vehicles. Built with the latest additive and synthetic base oil technology, AMSOIL Premium Synthetic 5W-40 Diesel Oil exceeds the higher performance demands of modern engines. It withstands the stress of heat, soot and acids to help prevent deposits, wear and corrosion. AMSOIL Synthetic 5W-40 is wax-free with a broad viscosity range to provide exceptional cold-weather starting and high temperature protection. It resists breakdown and offers maximum fuel efficiency over extended drain intervals.

AMSOIL, the leader in automotive synthetic lubrication, produced the world’s first API-qualified synthetic motor oil in 1972. Trust the extensive experience of AMSOIL, The First in Synthetics,® to do the best job protecting your engine.

Exceeds Emission System Requirements
AMSOIL Synthetic 5W-40 Diesel Oil is a low-sulfated ash formulation that exceeds the requirements for low-emission quality diesel oil. It is compatible with all exhaust treatment devices and is designed to extend the service life of diesel particulate fi lters (DPF).

Extended Drain Performance
AMSOIL Premium 5W-40 Diesel Oil can extend drain intervals far beyond those recommended for conventional petroleum oils. Its unique synthetic formulation and long-drain additive system (10.4 TBN) deliver superior engine protection, cleanliness and performance over extended drain intervals. AMSOIL Synthetic 5W-40 Diesel Oil provides
maximum protection for up to 3X the OEM-recommended drain interval, and further with oil analysis.

Improves Fuel Economy
The advanced synthetic technology used to engineer AMSOIL Premium 5W-40 Diesel Oil enhances viscosity properties and is proven to deliver better fuel economy. In fact, the Environmental Protection Agency’s (EPA) Federal Test Procedure confirms that AMSOIL 5W-40 Diesel Oil provides up to 3 percent better fuel economy than conventional 15W-40 diesel oils.

Fleet Savings vs. conventional 15W-40	1 Truck	50 Trucks
Fuel Economy Savings (1.6%)	$960	$48,000
Extended Drain Savings	$201	$10,050
Total Savings with AMSOIL	$1,161	$58,050

*Based on 120,000 miles per year with an OEM-recommended drain interval of 10,000 miles. Avg. 6 mpg, 32-qt. oil sump, $3/gal. fuel, $34.36/gal. AMSOIL, $13.55/gal. conventional diesel oil. Does not include labor, filter or used oil disposal costs, making AMSOIL even more cost effective.

Reduces Oil Consumption and Emissions
AMSOIL Synthetic 5W-40 Diesel Oil has lower volatility (burn-off) than conventional petroleum oils. Because less oil vapor passes into the combustion chamber, oil consumption and emissions are reduced. Lower volatility helps AMSOIL Premium Diesel Oil retain its viscosity after high-temperature service for dependable protection and excellent fuel economy.

Controls Soot-Thickening and Wear
The advanced synthetic base oils in AMSOIL 5W-40 Diesel Oil are naturally resistant to soot contamination. That, along with a heavy fortification of detergent/dispersant additives, keeps soot particles suspended independently, helping prevent the formation of larger wear-causing particles. Viscosity increase is minimized and soot-related wear is controlled.

APPLICATIONS
AMSOIL Premium CJ-4 Synthetic 5W-40 Diesel Oil is recommended for diesel engines and, where appropriate, gasoline engines requiring any of the following specifications:

• SAE 5W-40 • API CJ-4, CI-4+, CF, SM
• ACEA E7, E9 • Mack EO-O Premium Plus
• DDC Power Guard 93K218
• Caterpillar ECF-3, ECF-2 • Cummins 20081
• Volvo VDS-4 • MB 228.31 • MTU Type I & II
• MAN 3275 • JASO DH-2 • Global DHD-1
• Renault RLD-3

COMPATIBILITY
AMSOIL Synthetic 5W-40 Diesel Oil is compatible with conventional and synthetic motor oils. Mixing AMSOIL motor oils with other oils, however, will shorten the oil life expectancy and reduce the performance benefits. AMSOIL does not support extended drain intervals where oils have been mixed. Aftermarket oil additives are not recommended for
use with AMSOIL motor oils.

SERVICE LIFE
AMSOIL Premium API CJ-4 Synthetic 5W-40 Diesel Oil is recommended for extended drain intervals in engines that are unmodified and in good operating condition.

Diesel Engine Service
• Three times (3X) OEM* recommendation, not to exceed 50,000 miles/600 hours or one year, whichever comes first. Drain intervals may be extended further with oil analysis.

Gasoline Engine Service
• Two times (2X) OEM* recommendation, not to exceed 15,000 miles or one year, whichever comes first.

*Operating conditions and drain intervals for severe and normal service are defined by the OEM. Refer to your owner’s manual.

Note: Extended drain intervals are not recommended when using biofuels containing >10% ethanol or 5% biodiesel (B5). Follow OEM drain intervals or extend drain intervals with oil analysis.

HEALTH & SAFETY
This product is not expected to cause health concerns when used for the intended application and according to the recommendations in the Material Safety Data Sheet (MSDS). An MSDS is available via the Internet at www.amsoil.com or upon request at (715) 392-7101. Keep Out of Reach of Children. Don’t pollute. Return used oil to collection centers.

TYPICAL TECHNICAL PROPERTIES
AMSOIL Premium API CJ-4 Synthetic 5W-40 Diesel Oil (DEO)
Kinematic Viscosity @ 100°C, cSt (ASTM D-445)	14.6
Kinematic Viscosity @ 40°C, cSt (ASTM D-445)	87.1
Viscosity Index (ASTM D-2270)	175
CCS Viscosity @ -30°C, cP (ASTM D-5293)	6075
Flash Point °C (°F) (ASTM D-92)	232 (450)
Fire Point °C (°F) (ASTM D-92)	246 (475)
Pour Point °C (°F) (ASTM D-97)	-46 (-51)
Noack Volatility (DIN 51581) 250°C for 1 hour, % weight loss	9.7
Four-Ball Wear Test (ASTM D-4172: 40kgf, 75°C, 1200 rpm, 1 hr) Scar diameter, mm	0.45
Total Base Number	10.4
High Temperature/High Shear Viscosity, cP (ASTM D-4683)	4.0
Sulfated Ash Content, wt. %	1.0

AMSOIL Premium API CJ-4 Synthetic 15W-40 Diesel Oil (DME)
Superior Shear Stability and Extended Drain Intervals in Ultra-Low Emission Diesel Engines. AMSOIL Synthetic 15W-40 Diesel Oil (DME) is the premium choice for API CJ-4 emission-quality diesel oil required by model-year 2007 and newer diesel engines.

See Pricing Information or Place an Order

Package sizes include:

1-Quart Bottle
1-Quart Bottles (case of 12)
1-Gallon Bottle
1-Gallon Bottles (case of 4)
2.5-Gallon Bottle
2.5-Gallon Bottles (twin pack)
30-Gallon Drum
55-Gallon Drum

PRODUCT DESCRIPTION
AMSOIL Synthetic 15W-40 Diesel Oil (DME) is the premium choice for API CJ-4 emission-quality diesel oil required by model-year 2007 and newer diesel engines. It delivers extraordinary lubrication in diesel engines found in commercial, fleet and personal vehicles. Built with the latest additive and synthetic base oil technology, AMSOIL Premium Synthetic 15W-40 Diesel Oil exceeds the higher performance demands of modern engines. It withstands the stress of heat, soot and acids to help prevent deposits, corrosion and wear. AMSOIL, the leader in automotive synthetic lubrication, produced the world’s first API-qualified synthetic motor oil in 1972. Trust the extensive experience of AMSOIL, The First in Synthetics,® to do the best job protecting your engine.

Exceeds Emission System Requirements
AMSOIL Synthetic 15W-40 Diesel Oil is a low-sulfated ash formulation that provides excellent performance in low-emission diesel engines. It is compatible with all exhaust treatment devices and is designed to extend the service life of diesel particulate filters (DPF).

Extended Drain Performance
AMSOIL Premium 15W-40 Diesel Oil can extend drain intervals far beyond those recommended for conventional petroleum oils. Its unique synthetic formulation and longdrain additive system (10.4 TBN) deliver superior engine protection, cleanliness and performance over extended drain intervals. AMSOIL Synthetic 15W-40 Diesel Oil provides
maximum protection for up to 3X the OEM-recommended drain interval, and further with oil analysis.

Controls Soot-Thickening and Wear
The advanced synthetic base oils in AMSOIL 15W-40 Diesel Oil are naturally resistant to soot contamination. That, along with a heavy fortification of detergent/dispersant additives, keeps soot particles suspended independently, helping prevent the formation of larger, wear-causing particles. Viscosity increase is minimized and soot-related wear is
controlled.

Superior Shear Stability, Reduced Oil Consumption
AMSOIL Synthetic 15W-40 Diesel Oil has lower volatility (burn-off) than conventional petroleum oils. Because less oil vapor passes into the combustion chamber, oil consumption and emissions are reduced. Lower volatility helps AMSOIL Premium Diesel Oil retain its viscosity after high-temperature service for continued dependable protection.

Ideal for Fleets
AMSOIL Premium 15W-40 Diesel Oil reduces operating costs through extended drain intervals. It is engineered for a wide range of applications, allowing fleet operators to consolidate engine oil inventories in mixed fleets. In addition, it reduces downtime through extended drain intervals and improved equipment protection.

AMSOIL 15W-40 Diesel Oil costs less per mile than conventional oil
Fleet Savings vs. conventional 15W-40	Total Lubricant Used	Cost Per Gallon	Total Lubricant Cost x1 Truck	Total Lubricant Cost x50 Trucks
Conventional 15W-40	8 gal x12=96 gal	$13.55	$1,301	$65,050
AMSOIL Synthetic 15W-40	8 gal x4=32 gal	$34.36	$1,100	$55,000
Total Savings With AMSOIL			$201	$10,050
Based on 120,000 miles per year with an OEM-recommended drain interval of 10,000 miles. Does not include labor, filter, or used oil disposal costs, making AMSOIL even more cost effective.

APPLICATIONS
AMSOIL Premium CJ-4 Synthetic 15W-40 Diesel Oil is recommended for diesel engines and, where appropriate, gasoline engines requiring any of the following specifications:

• SAE 15W-40
• API CJ-4, CI-4+, CF, SM
• ACEA E7, E9
• Mack EO-O Premium Plus
• DDC Power Guard 93K218
• Caterpillar ECF-3, ECF-2
• Cummins 20081
• Volvo VDS-4
• MB 228.31
• MTU Type I & II
• MAN 3275
• JASO DH-2
• Global DHD-1
• Renault RLD-3

COMPATIBILITY
AMSOIL Synthetic 15W-40 Diesel Oil is compatible with conventional and synthetic motor oils. Mixing AMSOIL motor oils with other oils, however, will shorten the oil life expectancy and reduce the performance benefits. AMSOIL does not support extended drain intervals where oils have been mixed.

Aftermarket oil additives are not recommended for use with AMSOIL motor oils.

SERVICE LIFE
AMSOIL Premium CJ-4 Synthetic 15W-40 Diesel Oil is recommended for extended drain intervals in engines that are unmodified and in good operating condition.

Diesel Engine Service
• Three times (3X) OEM* recommendation, not to exceed 50,000 miles/600 hours or one year, whichever comes first. Drain intervals may be extended further with oil analysis.

Gasoline Engine Service
• Two times (2X) OEM* recommendation, not to exceed 15,000 miles or one year, whichever comes first.

*Operating conditions and drain intervals for severe and normal service are defined by the OEM. Refer to your owner’s manual.

Note: Extended drain intervals are not recommended when using biofuels containing >10% ethanol or 5% biodiesel (B5). Follow OEM drain intervals or extend drain intervals with oil analysis.

TYPICAL TECHNICAL PROPERTIES
AMSOIL Premium API CJ-4 Synthetic 15W-40 Diesel Oil (DME)
Kinematic Viscosity @ 100°C, cSt (ASTM D-445)	14.5
Kinematic Viscosity @ 40°C, cSt (ASTM D-445)	98.2
Viscosity Index (ASTM D-2270)	153
CCS Viscosity @ -30°C, cP (ASTM D-5293)	5210
Flash Point °C (°F) (ASTM D-92)	240 (464)
Fire Point °C (°F) (ASTM D-92)	254 (489)
Pour Point °C (°F) (ASTM D-97)	-40 (-40)
Noack Volatility (DIN 51581) 250°C for 1 hour, % weight loss	6.8
Four-Ball Wear Test @ 40kgf, 75°C, 1200 rpm, 1 hr Scar,mm (ASTM D-4172)	0.45
Total Base Number	10.4
High Temperature/High Shear Viscosity, cP (ASTM D-4683)	4.2
Sulfated Ash Content, wt. %	1.0

"How to Reduce or Prevent Turbocharger Bearing Seizures"

One of the many specific areas, on turbocharged engines, that can clearly benefit from the use of synthetic oil is the turbocharger. When a turbocharged engine is shut off immediately after use, "heat soak" occurs due to the extremely high temperature still present in the turbocharger. Over a period of time this can lead to deposits that can reduce or block the oil flow to the turbocharger bearings which can lead to turbocharger bearing seizure.

AMSOIL's Synthetic Diesel Oils are inherently more thermally stable than many diesel oils on the market and have been shown to keep turbochargers considerably cleaner than other brands of oil. While poor quality engine oils have been shown to cause turbocharger bearing seizure in under 100 hours during a "heat soak" test.

Many diesel engine oils will survive the 100 hour "heat soak" test, but..., with considerable deposits and incipient oil passage blocking. If you use low quality diesel oils make sure you let the engine idle for a few minutes after use to allow the engine and turbocharger to cool. This does not eliminate deposit formation but it can reduce it.

Amsoil High Temperature Test

Take a look at the varnish deposits in this picture. These are the results of a severe high temperature deposit test. The one at the far right is AMSOIL Synthetic 15W-40 Diesel oil and the others are major brand petroleum diesel oils. (left to right: Chevron Delo 400, Cummins Premium Blue, Shell Rotella T, AMSOIL (15W-40). The test clearly shows that AMSOIL diesel oil keeps engines cleaner longer than other major brand diesel oils do. Which oil would you rather have protecting your engine?

Amsoil Synthetic Diesel Oil Proven to Prevent Turbocharger Bearing Seizure

One of the many specific areas on a diesel turbocharged engine, such as the Powerstroke, Duramax, and Cummins Diesel which can clearly benefit from the use of synthetic motor oil is the turbocharger. When a diesel turbocharged engine is shut off immediately after a high speed run, "heat soak" occurs from the engine, and it considerably increases the temperature in the turbocharger. Over a period of time this can lead to deposits that can block the oil flow to the turbocharger bearings, leading to turbocharger seizure. Synthetic diesel engine oils that are inherently more thermally stable than petroleum engine oils have been shown to keep turbochargers considerably cleaner than petroleum engine oils. A poor petroleum diesel oil will give turbocharger seizure, caused by blocked oilways, in under 100 hours of a severe "heat soak" test cycle. A good diesel petroleum oil will survive for 100 hours but with considerable deposits and incipient blocking. A good synthetic oil will maintain the turbocharger in almost "as fitted" condition.

FREE! Receive an AMSOIL Wholesale Purchasing Information Packet, Product Data, CD Rom, Price List, Diesel Info and a Retail Catalog (a $6.95 value)

Click Here

AMSOIL is the undisputed leader in synthetics......

Since 1972, AMSOIL Synthetics have proven to be the BEST. AMSOIL also engineers and manufactures Super Duty Oil filters which have a 25,000 mile service life as well as specialized filtration systems for commercial and fleet applications in cars and light, medium and heavy trucks which can filter particles down to less than one micron (a standard full flow oil filter can only filter to 20-25 microns with any degree of efficiency) making oil changes virtually unnecessary and virtually eliminating engine wear. These filters have been proven by millions of miles of over-the road trucks, construction equipment and fleet service.

· AMSOIL saves you time and money.

· The only 25,000 mile/one- year and 35,000/one- year motor oil in the world.

· Exceeds the most stringent performance specifications of all major U.S. and foreign automotive and truck manufacturers.

· Provides up to two-times the wear protection of other motor oils.

· Increases the life of your vehicle.

· Improves performance, fuel economy and efficiency.

· Diesel oil and filtration products designed to deliver 1,000,000 miles for over-the-road trucks before engine overhaul.

· Used by many national racing teams, fleets, police departments, construction firms and trucking companies.

Enhanced Synthetic Oil is comprised of a group of highly skilled team of Engineers and Lubrication and Filtration Specialists. You too, can join our group when you become an AMSOIL Dealer and take advantage of all that we offer as you use products in your own vehicles or begin your own AMSOIL business. You won't find a more knowledgeable and skilled group of Dealers anywhere which is very important when you need support as you build your business.

In addition, as a Dealer in our group you will receive exclusive unlimited product, technical and business support from the only group of Truck and Automotive Engineers and Lubrication Specialists on the net.

We do not only run our business on the internet. We also have numerous commercial, industrial, trucking, excavating, construction, logging, police, racing and many more accounts that we support and service on a regular basis. We have several fully stocked warehouses and fully equipped shop facilities. This provides us with excellent knowledge of the products, equipment and the business and the ability to respond immediately to any of your needs. We will use this knowledge and experience to help you get started so you too can achieve your goals.

We possess the skills, desire and knowledge to answer questions, solve problems, improve efficiency, reduce downtime, maintenance costs and increase the durability and life of all of your vehicles.

Read what our satisfied customers have to say about us. Read through our website. Contact us with any questions. If you decide to become an AMSOIL Dealer you will be joining, in our opinion, the most skilled AMSOIL group there is. We will help you get started and provide you with the tools and information in order to be successful in this business or with technical and product assistance to use AMSOIL products in your own vehicles.

We offer several options to receive information on AMSOIL. We welcome the opportunity to work with you personally as your servicing AMSOIL Dealer.

Contact us and we will send you an exclusive comprehensive package of product, technical and business information. If you are serious about AMSOIL products and the business opportunity this is the best option. You will receive extensive technical and business support from both myself and my AMSOIL Dealer Group. We look forward to helping you learn about AMSOIL.

OR - for a smaller, very general information package (which includes a catalog and Dealer application) you can request information via any of the links below.

To request a FREE Factory Direct Catalog

For Information on Becoming an AMSOIL Dealer

To Buy AMSOIL Products in the AMSOIL On-Line Store

To Sell AMSOIL in Your Store or Purchase For Use in Your Businesses Equipment

To visit the AMSOIL Corporate Website for Product and Business Opportunity Information

AMSOIL is Proudly Made in the U.S.A.

AMSOIL is America's Oil.

Enhanced Synthetic Oil, a Division of

Racers Products, LLC

Kent Whiteman

Ogden, Utah 84403

Phone Toll Free: 877-786-9582

Contact us by email

Copyright© 2014 Enhanced Synthetic Oil a Division of Racers Products, LLC all Rights Reserved. No part of this authorized Amsoil Dealer website may be reproduced or distributed in any form or by means, or stored in a database or retrieval system, without validated prior written permission. Special undetectable methods are used that will identify any of this website material copied, reworded, rewritten, and published to the web.

Like us on Facebook
